2 cavity 2L 5L full automatic water bottle blowing machines
2 cavity 2L 5L full automatic water bottle blowing machines
Performance and Characteristics of PET blow molding machine
Machine Features
A.Advanced PLC control system and touch screen with convenient operation.
B.High efficiency automatic preform loading device.
C.Precise infrared heating, the preform rotates by itself and on the orbit at the same time, with strong penetration and high heating efficiency.
D.High security ,when a failure occurs during action or machine running,the program will alarm immediately and display the cause of the failure.
E.Two ways of operate: automatic and manual.
F.Customized machine design saves space and energy.
G.Simple installation and operation.
For the automatic design, the heating and blowing process are separated in two parts, which requires workers to put the bottle preforms into the heating device and then take out the heated bottle preforms to the blowing machine for making bottles.

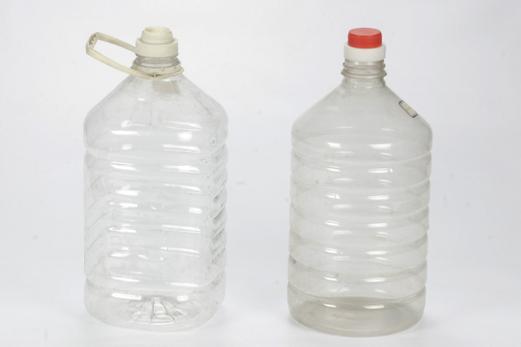

A2-5L high speed full automatic pet bottle blower can produce different shapes from 1L to 7L water bottles,edible oil bottles and other plastic PET containers. High speed,low defect rate,stable running and easy operation.
Machine Parts
a.PLC controller touch screen : Mitsubishi （Japan）
b.Pneumatic parts:AIRTAC(TAIWAN)
c.Controller of stretch ,shift ,clamping servo motor : Mitsubishi（Japan）
d.Other parts are world-famous brands
Product Detail
Model NO. |
A2-5L |
Theoretical Output |
1200pcs/hr |
Max.Container Volume |
7.0L |
Max. Neck Diameter |
55mm |
Max. Container Diameter |
175mm |
Max. Container Height |
350mm |
Number Of Cavity |
2 cavity |
Total Power |
50kw |
Use Power |
30kw |
Working Pressure |
1.0mpa |
Low Pressure Consuming |
2000L/min |
Blow Pressure |
≤3.5mpa |
High Pressure Consuming |
3600L/min |
Machine Size |
4.5x2x2.0m |
Machine Weight |
3.5T |
Feeding Machine Size |
2.0x1.0x2.5m |
Feeding Machine Weight |
0.25T |
*The machine can be customized according to the bottle size. |
|
5L 2cavity fully automatic PET blowing machine factory from Meto
Special designed machine for 5L PET bottle 2-cavity
1,Fully Automatic machine running
2,With infrared lamps, power saves up to 30%
3,Each lamp in each group is separately adjustable
4,Easy operation with HIMI
5,Modular design for easy maintenance
6,3-in-1 combination valve for faster air in and air out
