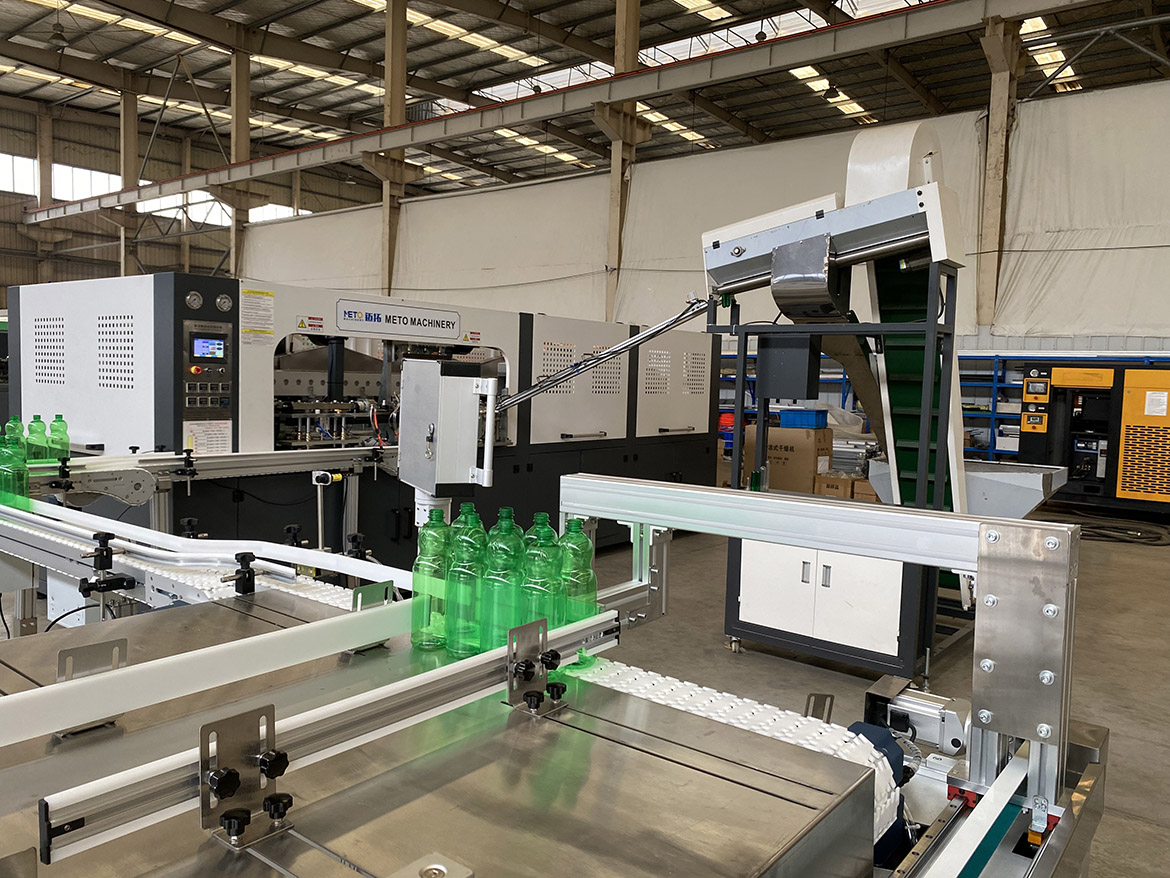

METO 4-cavity fully automatic PET blow molding machine ready for shipment

Meto-4 series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Main Features

Automatic Bottle Blow Moulding Machine

Energy saving

Easy to operate, just need feeding preform, other work is automatic.

Suitable for hot filling, PP, PET bottle blowing

Suitable for different preform neck size, it can change preform jigs very easily.

Mold replacement very easily.

Oven design in reasonable, adopt blowing-type, water cooling, air cooling all have. Suitable for hot environment to work, the preform neck can't distortion.

The heating lamp adopt infrared quartz lamp, not easy to damager, it is different than semi-auto blowing machine lamp. So it no need frequently to change lamp. The lamp life is long, even it is broken, it can use also.

Our hand feeding stretch blow molding machine can add autoloader+manipulator to became fully automatic.

Our Blow Moulding Bottle Machine is more safety and stabilization.

Our clamping unit adopt clooked arm configuration self-lubricating system. So very stabilization and no noise.

General Information	METO-4000
Clamping Force	370KN
Clamping Stroke	120~175mm
Max Strecthing Stroke	370mm
Bottom Moving Stroke	70mm
Number of Cavities	4
Theoretical Output	4000BPH
Max Mould Thickness	250mm
Space Between Tie Bras	640*380mm
Voltage Standard	380V 3PH 50Hz or special order
Number of Heating Zone	4 Sections
Total Power	45KW
Max Volume of Contanier	1.5L
Neck Diameter Range	16~38mm
Max Diameter of Contanier	110mm
Max Height of Contanier	380mm
Low Air Compressor	10Bar
High Air Compressor	30~40Bar
Blow Molding Machine	2.55*1.5*2.0m
Preform Auotloader	1.1*1.2*2.2m
Net Weight	3.5T

4 Cavities Full Automatic Pet Bottle Blowing Machine

https://www.metomachinery.com/Blow-Molding-Machine/MT-400.html

Pre-sale service
1. Act a good adviser and assistant of clients enable them to get rich and returns on their investments.
2. Select correct and suitable equipment model
3. Design and make products according to clients' special requests

On-sale service
1. Reporting on machine situation from time to time.
2. Pre-check and accept products ahead of delivery
3. Drawing workshop layout
4. Train the first-line operators

After-sale service
1. Provide considerable services to minimize client's worries.
2. Assist clients to prepare for the first construction schedule.
3. Install and debug the equipment
4. Examine the equipment
5. Take initiative to eliminate the troubles rapidly
6. Provide perfect service
