12000BPH high speed fully servo automatic small polycarbonate bottle blowing machine making 500ml pet bottle 2925

2024/3/28 visits

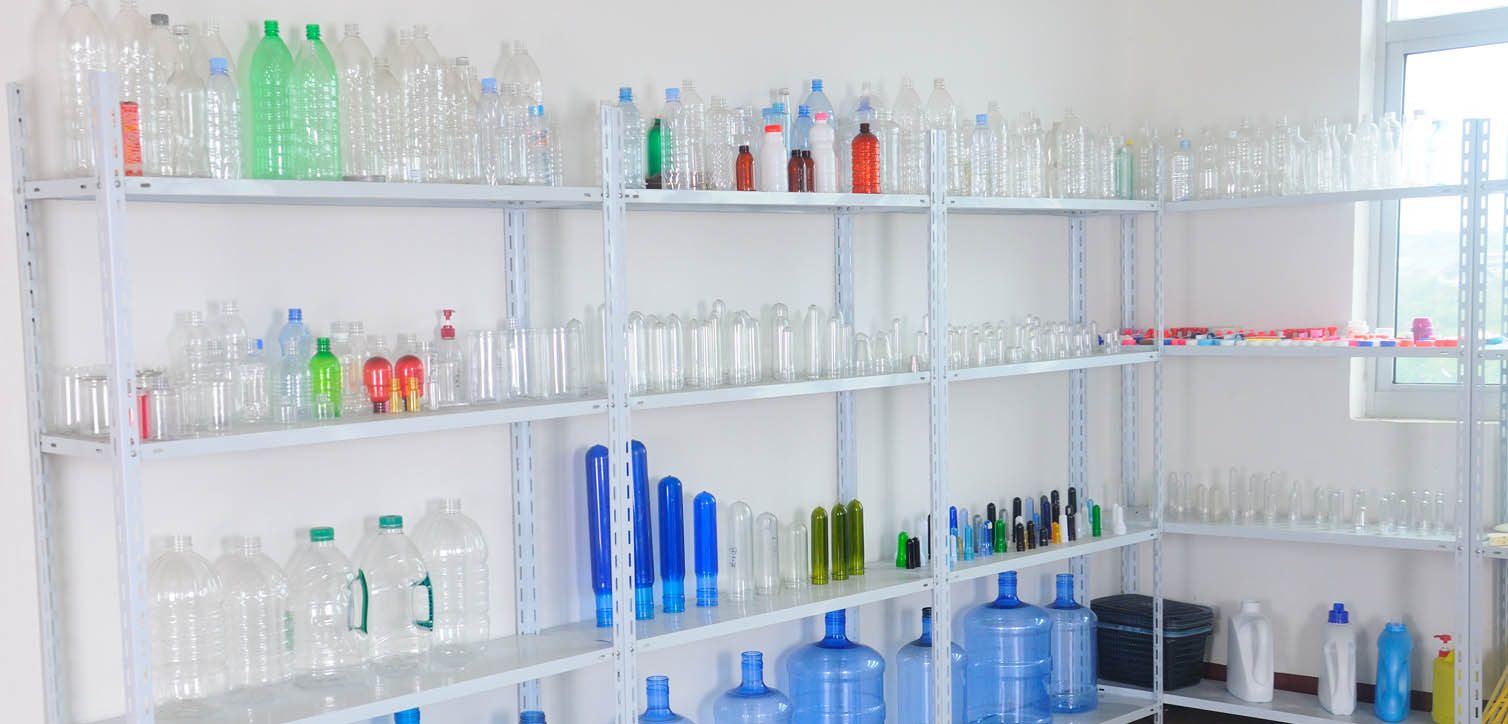

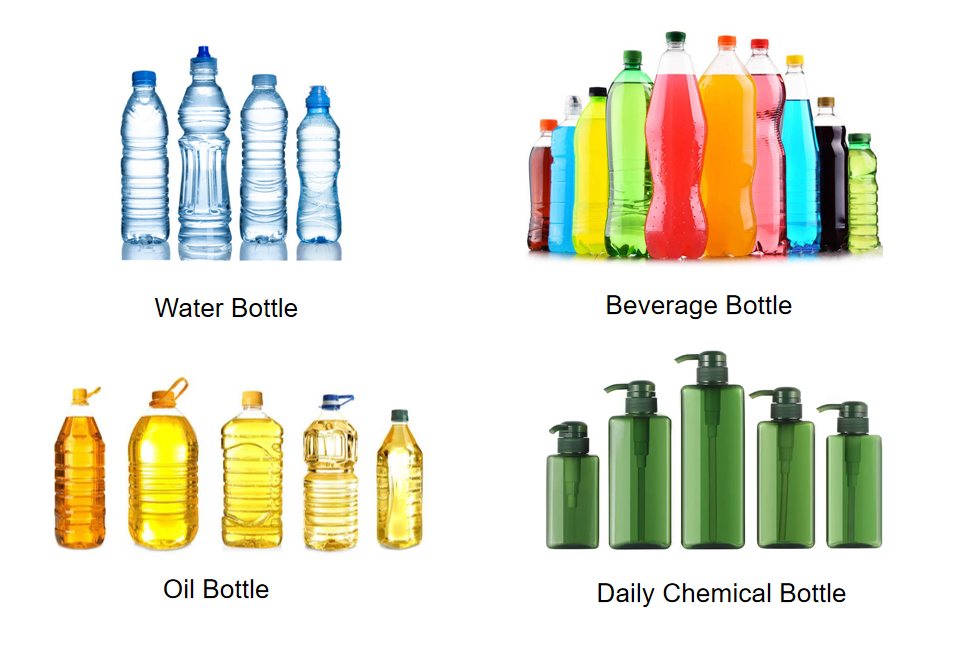

Suitable for all shapes of PET plastic bottles,widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc

√√ Brand: Meto Machinery-----Automatic Blowing Machine

√√ Application:0.2-2L

√√ Capacity:18000BPH

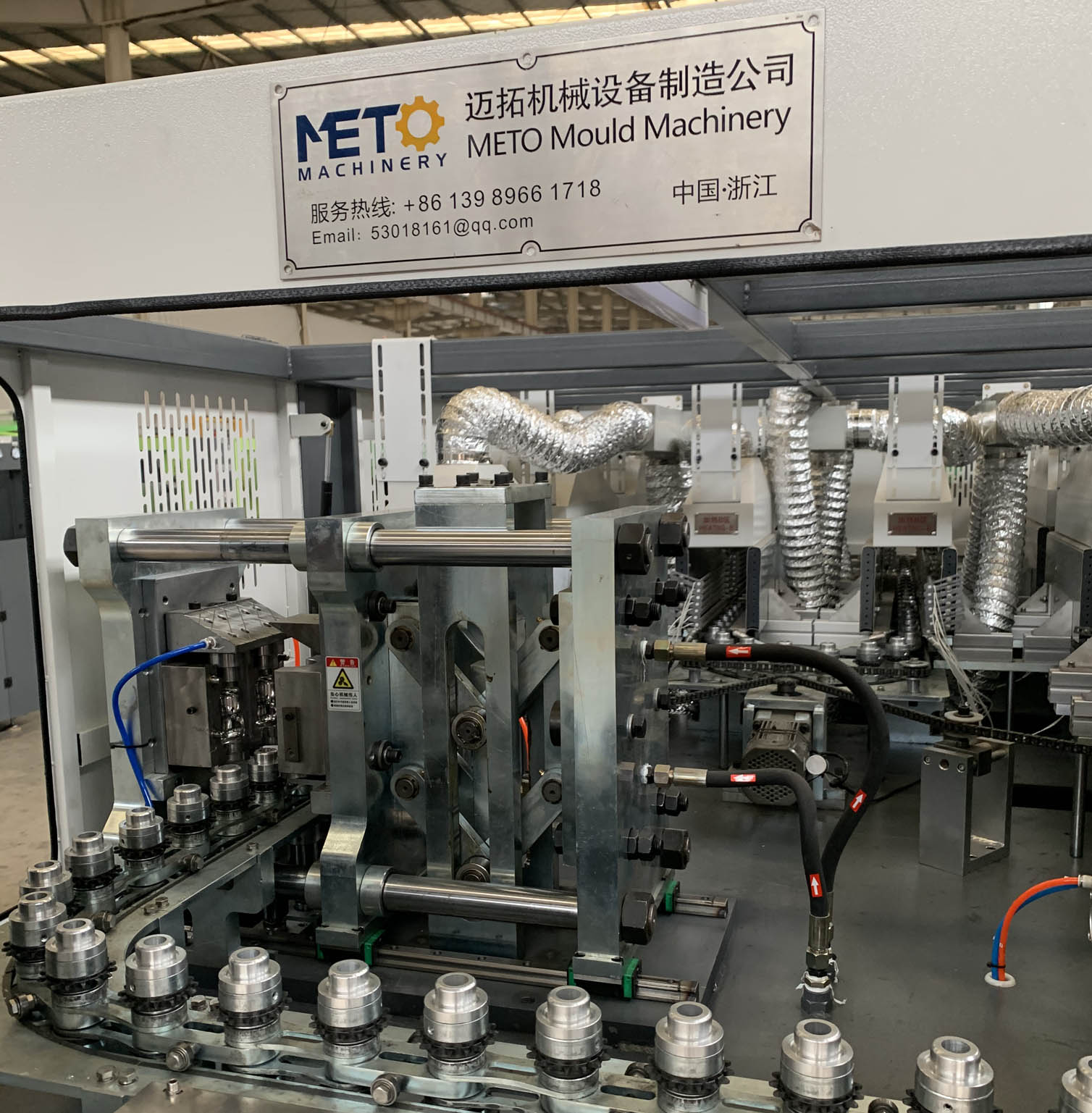

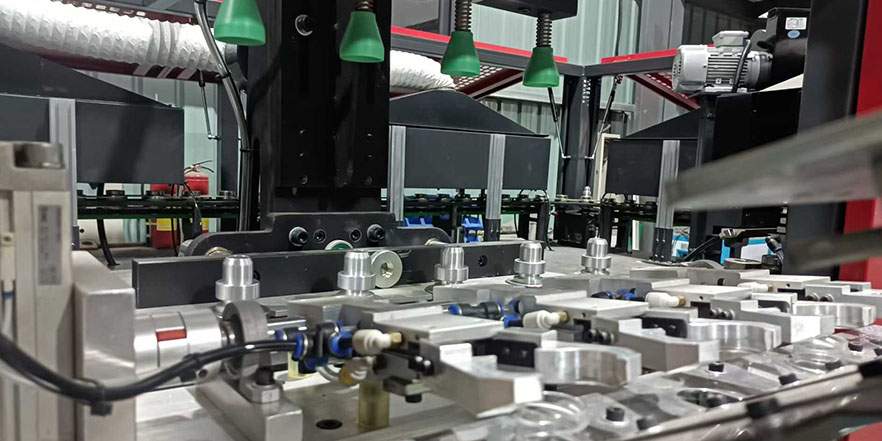

Utilizing a continuous rotating preform feeding system to ensure a high-speed supply of preforms.Preforms undergo no flipping or other actions, effectively reducing maintenance and part replacement costs.Multiple safety protection devices ensure uninterrupted continuous production, along with a preform revolution system that providescontinuous heating for uniform and efficient heating.

Centralized oreform heating optimizes the heating soace using lamp heating, increasing preform heating efficiency.use adiustable pitchstructure for energy savings.Direct water passage through the heating box and the installation of a cold air system ensure that the preform threads remain undistorted.Main actions are driven by servo motors to quarantee high-speed operation, precise positioning, and seamless automatic transitions betweenactions to meet high production capacity requirements

Item
MT-8-12
Bottle type specification Cavity 12
Max.volume 0.75L
Bottle mouth maximum overall diameter 28-38mm
Bottle biggest diameter 75mm
Bottle maximum height 180mm
Capacity specification Theory output 18000-24000 bph
Bottle type volume 600ml
Bottle type weight 13.5g
Bottle type Round
Power specification Light tube quantity 32pcs
Light tube power 1.75KW
Maximum heating power 56KW
All electric machine installation 71KW
Actual consumption 30%-60%
Air pressure specification Work pressure 5-6kg/c㎡
Blow bottle pressure 25-45kg/c㎡
Higher -pressure gas consumption 24000Ltr/min
Forzen water specification Work pressure 5-6 kg/c㎡
Temperature range 10℃
Consumption 12000kcal/hr
Frozen water flow 220L/min
Machine specification Machine size 7.57x1.6x1.9
Machine weight 11.6ton
