2 cavity 2L 5L full automatic water bottle blowing machines pet bottle blow molding machine

2024/3/29 ， visits

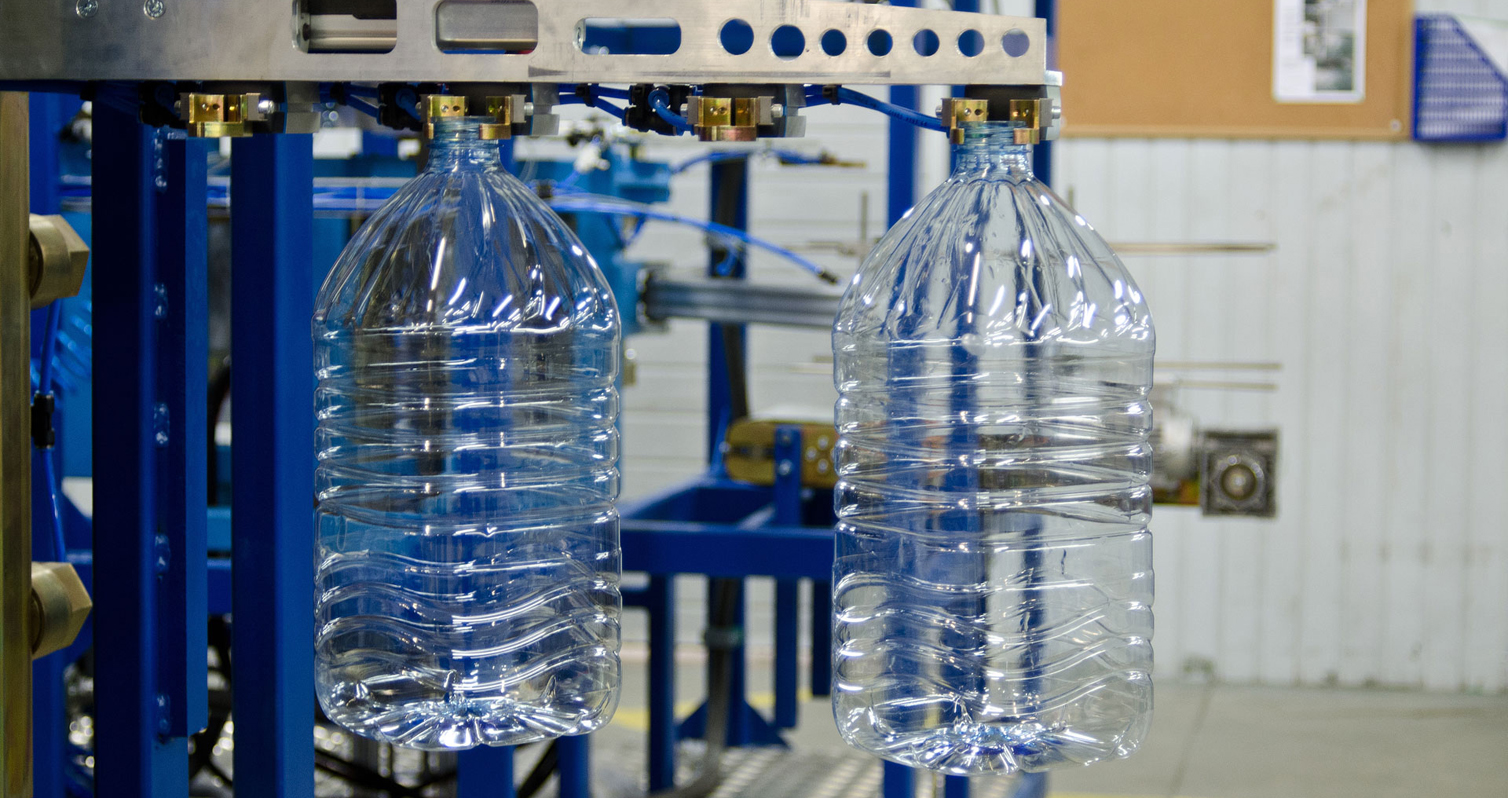

Meto Machinery's 5L linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections, and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.

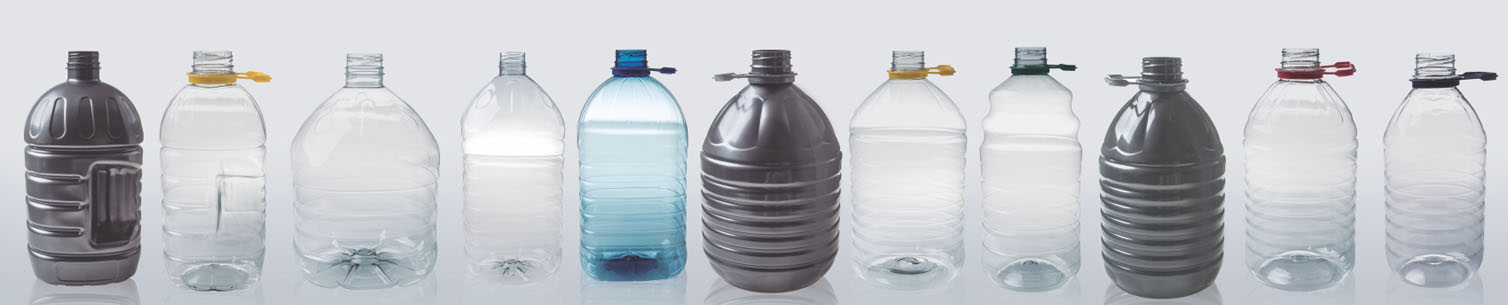

Ensure the uniformity and consistency of each preform stretching.At the same time, bottle blowing machine has a fast stretching speed and precise position. 5L series machine can be used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.

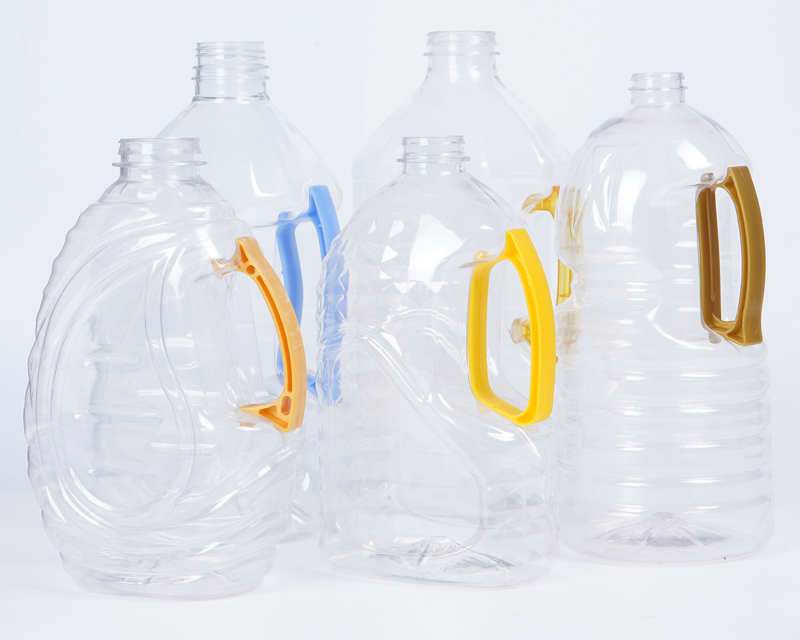

Edible oil bottle PET bottle blowing machine with up to 3 cavity, single cavity can manufacture PET bottles, 5 liters of cooking oil. This edible oil PET bottle blowing machine can also blow up other 2L large capacity plastic packaging containers, such as carbonated beverage bottles, middle and low temperature filling fruit juice beverage bottles, mineral water bottles, pesticide bottles and other plastic bottles blowing molding.

ITEM	UNIT	MT-1-5L	MT-2-5L	MT-3-5L
Number of cavity	Cavit	1	2	3
Theoretical Output	Pcs/h	500-600	1000-1200	1500-1700
Max.container volume	L	5	5	5
Max.neck diameter	mm	50	50	50
Max.container diameter	mm	200	200	200
Max.container height	mm	360	360	360
Mould Thickness	mm	240	240	240
Mould Stroke	mm	220	220	220
Stretching Stroke	mm	/	220	220
Power of Main Blower	KW	34	38	56
Actual power consumption	KW	15-20kw	25-30kw	35-40kw
Working Pressure	Mpa	0.8	0.8	0.8
Blowing pressure	Mpa	≦3.5	≦3.5	≦2.0
Measurement of Main Blower	mm	2700x1700x2200	3600x2100x2200	4900x2100x2200
Measurement of Elevator	mm	1960x1460x2550	1960x1460x2550	1960x1460x2550
Weight of Main Blower	kg	2500	3500	4500
